EBMX X-9000 Controller
SKU EBMX X-9000
€1 499,00
HOT🔥
Prijs incl. btw (21%) €260,16
Vanaf
Compatible with:
Fully installed and tested
Gelieve te kiezen
Heatsink colour
Op voorraad
1
EBMX X-9000 Controller
Productgegevens
Do you want more POWEEER?!
EBMX X-9000 Controller, ENHANCE YOUR ELECTRIC RIDE
EBMX Xtreme Electric Mods combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller.
The X-9000 has been purpose-built with dirt bike riders in mind. This controller is the real deal. Tons of power and extremely smooth throttle response with an app to tune it to your exact liking.
Using components sourced from reputable suppliers, each item has been engineered for peak performance, from the CNC machined internals and bus bars, injection moulded cover to the fully waterproof construction.
Whether you are trying to nail a wheelie, riding hard enduro, competing in a race series, commuting to work, or just cruising the trails with your family the X-9000 is built to give you ultimate freedom and control.
- Custom EBMX App for tuning and full control (Available free in the App Store and Google Play Store)
▫️ Multiple power modes and full adjustment in each mode
▫️ Adjustable speed limits for different ride modes
▫️ Customisable dashboard to set the display up how you want
- Built in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights and other 12v accessories as required and controllable through the app.

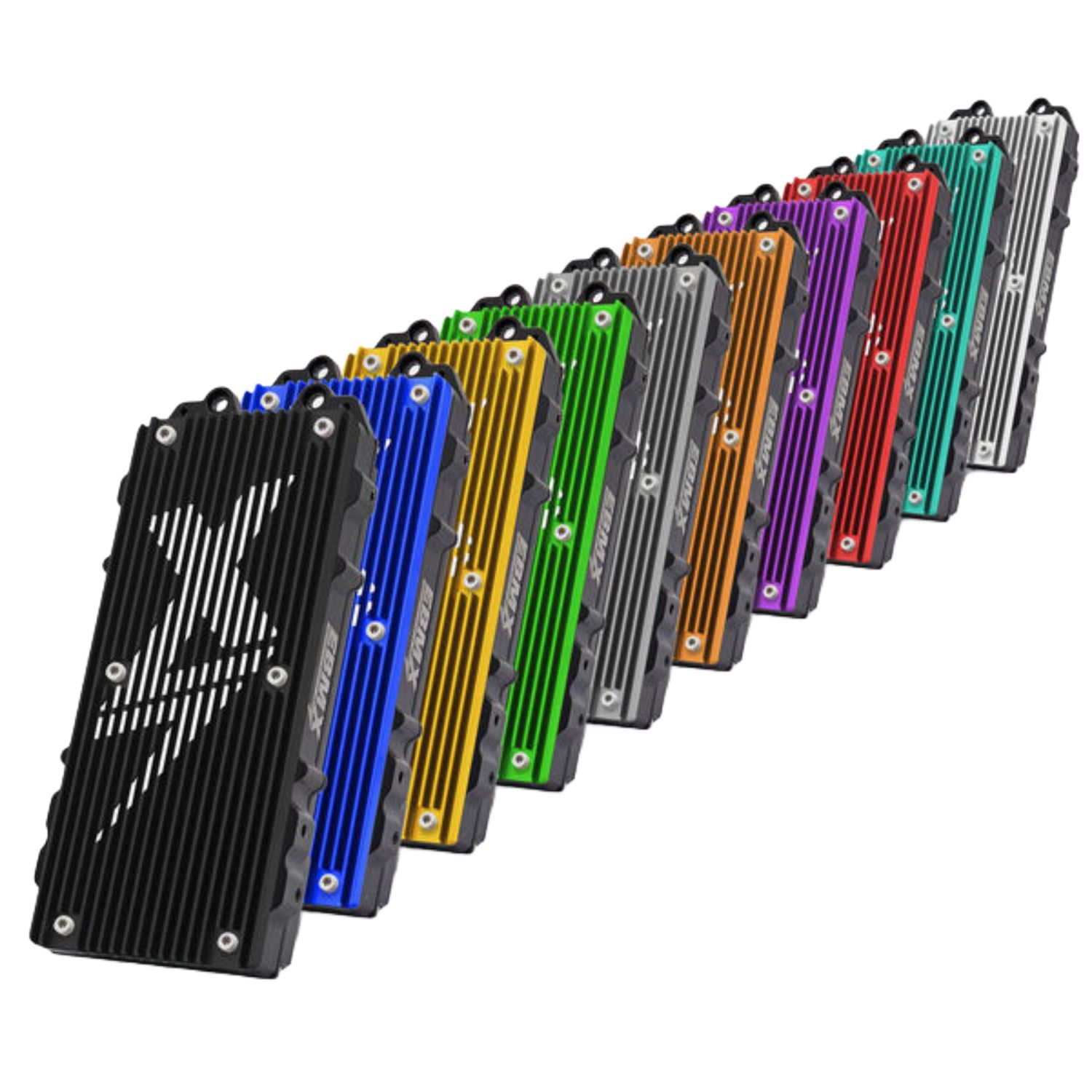

- Air-cooled heatsink as standard (comes in black, blue, red or gold). The option of a water-cooled heatsink for high powered builds is available.
- Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67 rated connectors for the harnesses.
- Direct bolt in for the SurRon Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).
- Integration with both SurRon hall-based motors and Talaria encoder motors
- Full access to tunes for multiple motors for custom mx conversions or other motorcycle conversions The current list of Motors that the X-9000 is compatible with is below:
▫️ SurRon Light Bee
▫️ OEM SurRon Light Bee
▫️ OEM SurRon Ultra Bee
▫️ OEM Talaria Sting MX3
▫️ OEM Talaria Sting R MX4
▫️ EBMX XLB-60
▫️EBMX XUB-80
▫️KO RS SurRon
▫️KO F Spec SurRon
▫️KO F Spec Talaria
▫️QS138 – 90H
▫️QS13
- We are currently tuning the following Motors and will update the above list as each motor is fully tested and available to choose on the EBMX app.
▫️ Sotion FW01
▫️ Sotion Talaria
▫️ Apollo RFN
▫️ ME1803 water cooled
▫️ QS Braaap Moto E Hub Motor
- SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info.
- Can be setup with a smart phone for the display or to check info as desired.
- Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.
EBMX combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller.EBMX combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller.The X-9000 has been purpose built with dirt bike riders in mind. Using components sourced from reputable suppliers, each item has been engineered for peak performance, from the CNC machined internals and bus bars, injection molded cover to the fully waterproof construction. Whether you are trying to nail a wheelie, riding hard enduro, competing in a race series, commuting to work, or just cruising the trails with your family the X-9000 is built to give you ultimate freedom and control.
Each kit includes everything needed for mounting and installing on your bike! No need to purchase anything separately!
| PERFORMANCE SPECS X-9000V2 | |
| RATED POWER | 40kw (CONTINUOUS) |
| INPUT VOLTAGE RANGE | 40v – 100v |
| WORKING VOLTAGE RANGE | 48v – 93v (22S) |
| PHASE | 1000A (continuous) |
| 1500A (burst) | |
| MAX EFFICIENCY | >95% |
| MAX BATTERY CURRENT | 500A |
| MOTOR CONTROL PROTOCAL | Field Oriented Control |
| INTERNALS | 30 Highly Efficient MOSFETS |
| Extra beefy CNC machined terminal and connections | |
| 12V DC-DC converter with 4 configurable outputs | |
| CANBUS Ready | |
| FIRMWARE | VESC based motor control and firmware modified by EBMX |
| OPERATING TEMPERATURE RANGE | minus 25 to 80 Degrees Celsius |
| INCLUSIONS | X-9000 Controller |
| Air Cooled Heat Sink | |
| SW102 Display | |
| Regen Thumb Throttle | |
| 2-1 Harness | |
| OPTIONAL ADDITIONS | Water cooled Heat Sink |
| SurRon Light Bee (no brackets required) | |
| Talaria Sting MX3/MX4 (no brackets required) | |
| Harness and Brackets for SurRon Ultra Bee | |
| Ultra Bee Display Cable | |
| Harness and Brackets for Talaria XXX | |
| Harness, Brackets and Bashguard for ERide Pro | |
| Metal Shroud for SurRon Ultra Bee | |
| Plastic Shroud for SurRon Light Bee | |
| WATERPROOFING | IP67 |
| WARRANTY | 2 Years |
| HEAT SINK COLORS | Black / Red / Blue / Gold / Purple / Other limited edition |
FAQ
Q: Can I install this kit myself? Kan ik de kit zelf installeren?
Yes, but to avoid us spending hours on the phone or having to send countless emails back and forth, please note that if you have any questions or a problem, you must contact EBMX directly via the ‘EBMX X-9000 controller Facebook group’ or by sending an email to support@ebmx.com. If you are unable to resolve the issue, you can request a 'Technical Support ticket' by email. We will send you an invoice of 60 Euro per half hour started and per issue or problem, which you must pay before any form of support can take place.
Ja, echter om te vermijden dat wij uren aan de telefoon gaan hangen of talloze mails over en weer moeten sturen dient u er rekening mee te houden dat u bij vragen of een eventueel probleem rechtstreeks contact met EBMX dient op te nemen. Dit kan via de ‘EBMX X-9000 controller Facebook group’ of door een mail te sturen naar support@ebmx.com. Komt u er alsnog niet uit dan kan u ons per mail een 'Technical Support ticket' aanvragen. U krijgt van ons een factuur van 60 Euro per begonnen half uur en per kwestie of probleem die u dient te betalen alvorens er enige vorm van support kan plaatsvinden.
Q: Does installing this kit void my warranty? Maakt het installeren van deze kit mijn garantie ongeldig?
Yes, installing this kit would void the warranty on your E RIDE PRO SS if it is still under a warranty period.
Ja, het installeren van deze kit zou de garantie op uw E RIDE PRO SS ongeldig maken, indien deze nog onder een garantieperiode valt.
Q: When can I have the upgrade installed? Wanneer kan ik de upgrade laten plaatsen?
As soon as we have received your webshop order, you will be contacted to schedule a date.
Van zodra wij uw webshop order hebben ontvangen zal er met u contact worden opgenomen om een datum in te plannen.
Q: How much power can I expect from this upgrade? Hoeveel vermogen kan ik van deze upgrade verwachten?
With the original battery 15 kW and 600 phase amps
Met de originele batterij 15 kW and 600 phase amps
Q: Why did EBMX want to make a controller?
The current controller options on the market were not cutting it... we needed better performance, more features, better reliability, better supply chain relationships and stock on hand. The only way to ensure things were done right was to do it ourselves! This project has in the works for over 9 months, and it has been hard to stay patient and quiet, especially with recent issues with other controllers. We can’t wait for you to experience the EBMX controller for yourself. We are confident you will agree this is the future of electric dirt bike motor controllers.
Q: How is this controller tested?
We were just as sick as you were of installing a new (non-EBMX) controller only to have an error before the bike has even run! Rest assured that each controller is bench tested using a dyno and run up to 30kw then stalled out. This is the most violent type of test that can be carried out and we ensure every controller passes this test before leaving the factory to come to you.Q: Water has always been an issue in other controllers, how is the EBMX controller better?
Q: How can adjustments be made to the tunes to dial them in for specific types of riding and my needs?
Q: How does the 12v output for the controller work?
The controllers have a inbuilt DC/DC converter that output 12v and up to 5A, there are 4 different programmable outputs that can be used for a wide range of applications such as coolant pumps, high power head lights and other 12v applications. Since this is built into the controller, it can be programmed and controlled using the EBMX App to suit your specific application and needs.
Q: Will I be able to control speed limits in different modes on my bike?
Yes, there are two main modes (street and race). You are able to set different speed limits (and multiple power level steps) in each of the modes.
Q: What if I have a different motor in my bike (KO?) What needs to be done to the controller to make it run? What if I have an encoder motor vs a hall sensor motor?
EBMX have custom tune maps for a multitude of motors (Including KO, QS, ME....). All tunes will be available on the app and able to be swapped as needed. The EBMX controller functions flawlessly with both encoder and hall sensor motors.Q: What if I want to ride a wheelie while holding an ice cream in my right hand and I’m not sure I’ll be able to do that because I will have to let the throttle off?
What a predicament! Fear not thought, we have you covered. You can use the App to swap the regen thumb throttle over to being used as a left-hand thumb throttle and keep that wheelie going for as long as it takes you to eat your ice cream, assuming you have the skills to pull it off. There are many features and adjustments that can be made using the controller... best you get one for yourself and start having a play to discover everything it can do!*E RIDE PRO BELGIUM accept no liability for DIY bypass batteries or installations of our range and E RIDE PRO modifications. *E RIDE PRO BELGIUM aanvaardt geen aansprakelijkheid voor doe-het-zelf-bypass-batterijen of installaties van ons assortiment E RIDE PRO modificaties.
Mogelijk bent u ook geïnteresseerd in
HOT🔥

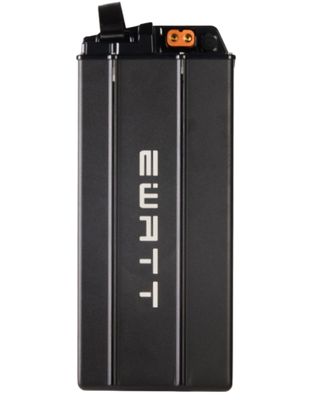

EWATT 81V 45Ah E RIDE PRO SS Race Battery
